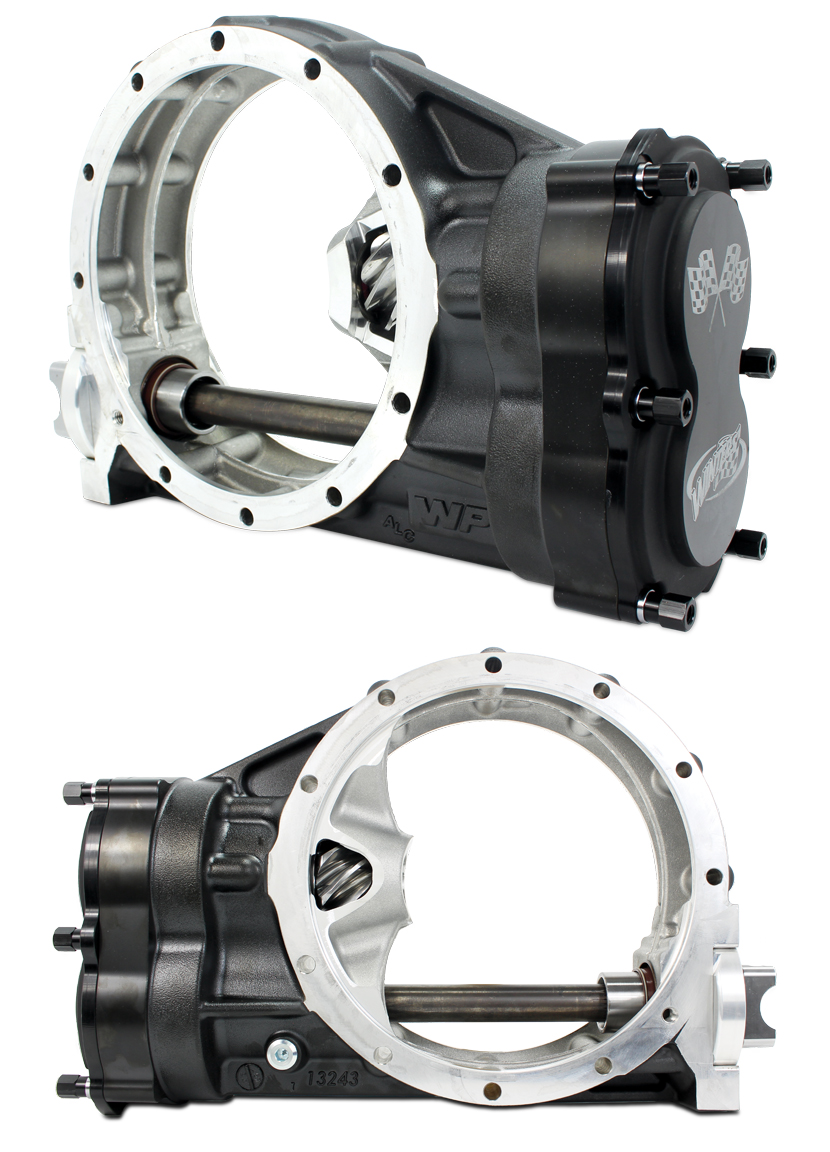

New Northeast Mod Snub Nose Quick Change: A Revolution in Modified QC Design
Dirt Modifieds push the limits of power and performance in ways not seen in many other forms of racing. Our brand new Snub Nose Quick Change reduces that stress and greatly improves strength and reliability in several ways:
• 3" shorter center section allows for a longer driveshaft mounted at a less severe angle. The improved driveline geometry saves U-Joints and increases rear end durability.
• 28-spline billet steel yoke has a dedicated bearing to absorb the stress from the driveshaft, protecting the lower shaft from excessive flex and prolonging the life of the shaft.
• New bearing in the rear gear cavity interposes the lower change gear between two bearings, creating a floating lower shaft and virtually eliminating stress at the lower gear.
• Permanent Mold center section and 8-rib bell castings are significantly stronger than the sand cast components available in other quick changes on the market.
For more details, click here and see pages 4-7 in our new Modified catalog.
You can also watch a video on the Snub Nose QC by clicking here.
For more information on the Permanent Mold casting process, click here to watch our informational video. Tested by an independent laboratory, here's how the Permanent Mold centers stacked up against sand cast rears:
